CoreGrafx - Full Component Guide

[Fidde_se]

Everything needed to know about the components when in need of repairing the CoreGrafx.

Components Text File:
*** Being Written ***

PDFs for circuits and special components:
*** Being Written ***

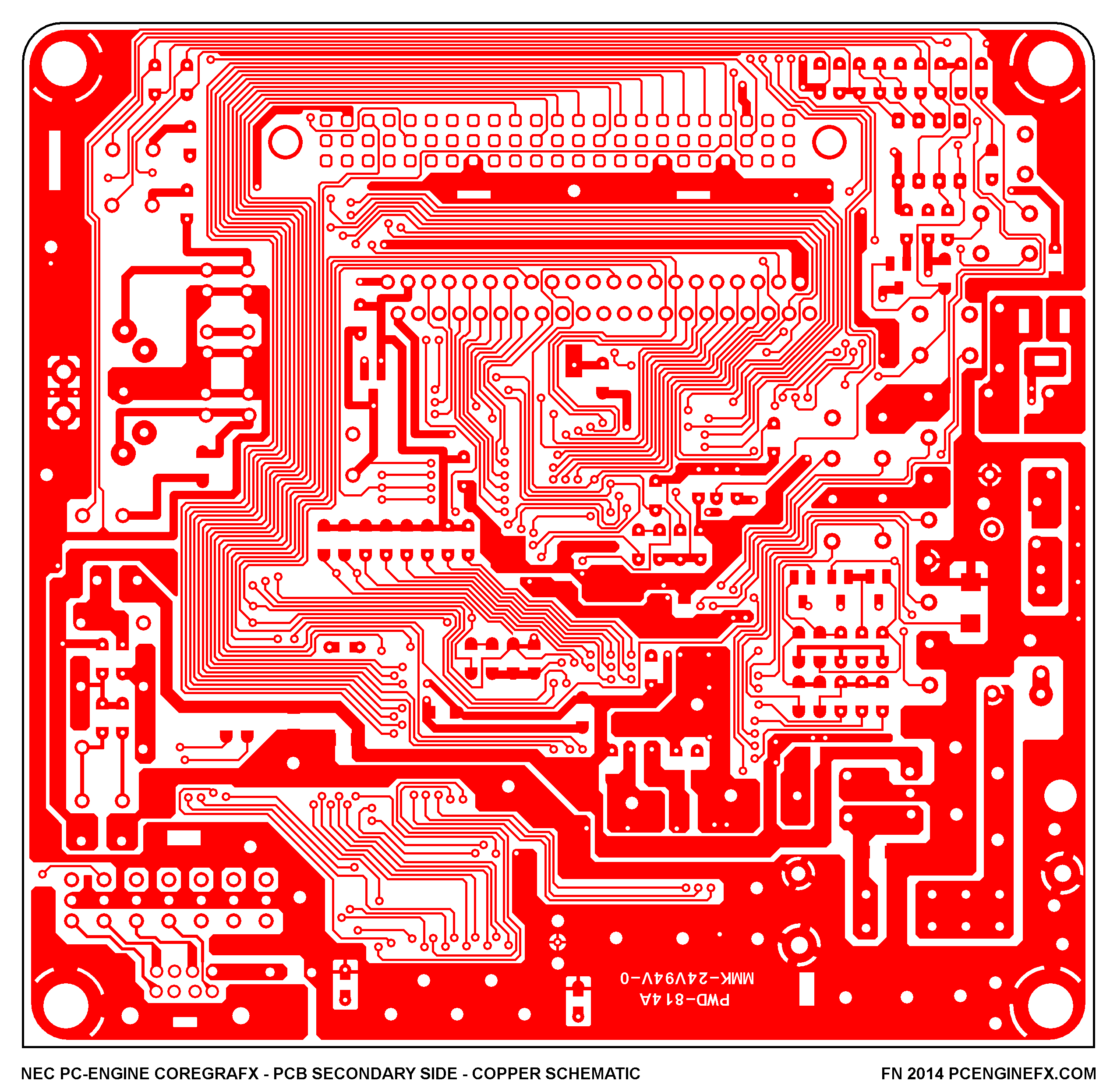

CoreGrafx PCB Secondary:


Large: retrosampling.se/Coregrafx%20PCB%20Secondary%20Copper.png

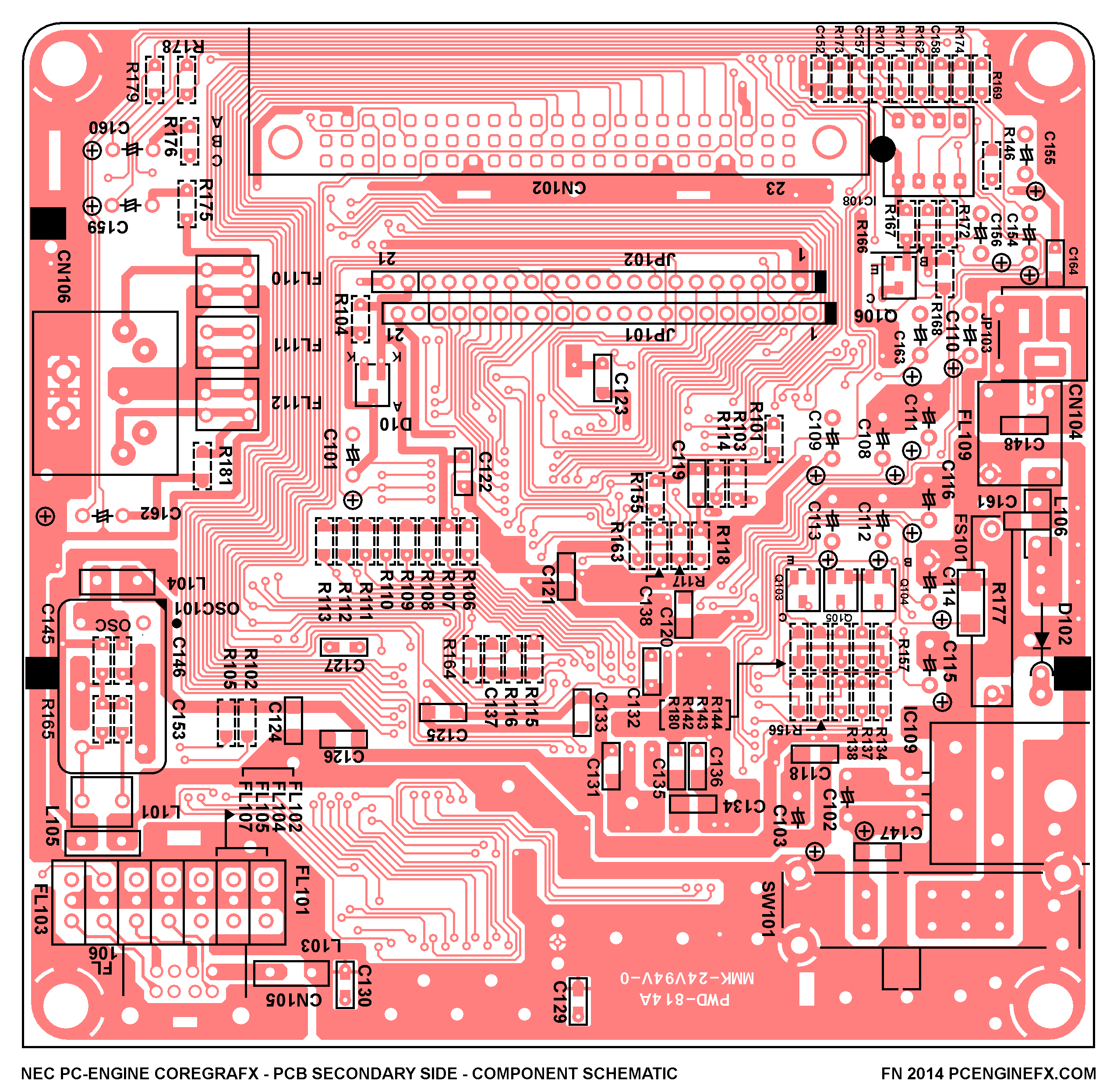

CoreGrafx Components Secondary:


Large: retrosampling.se/Coregrafx%20PCB%20Secondary%20Components.png

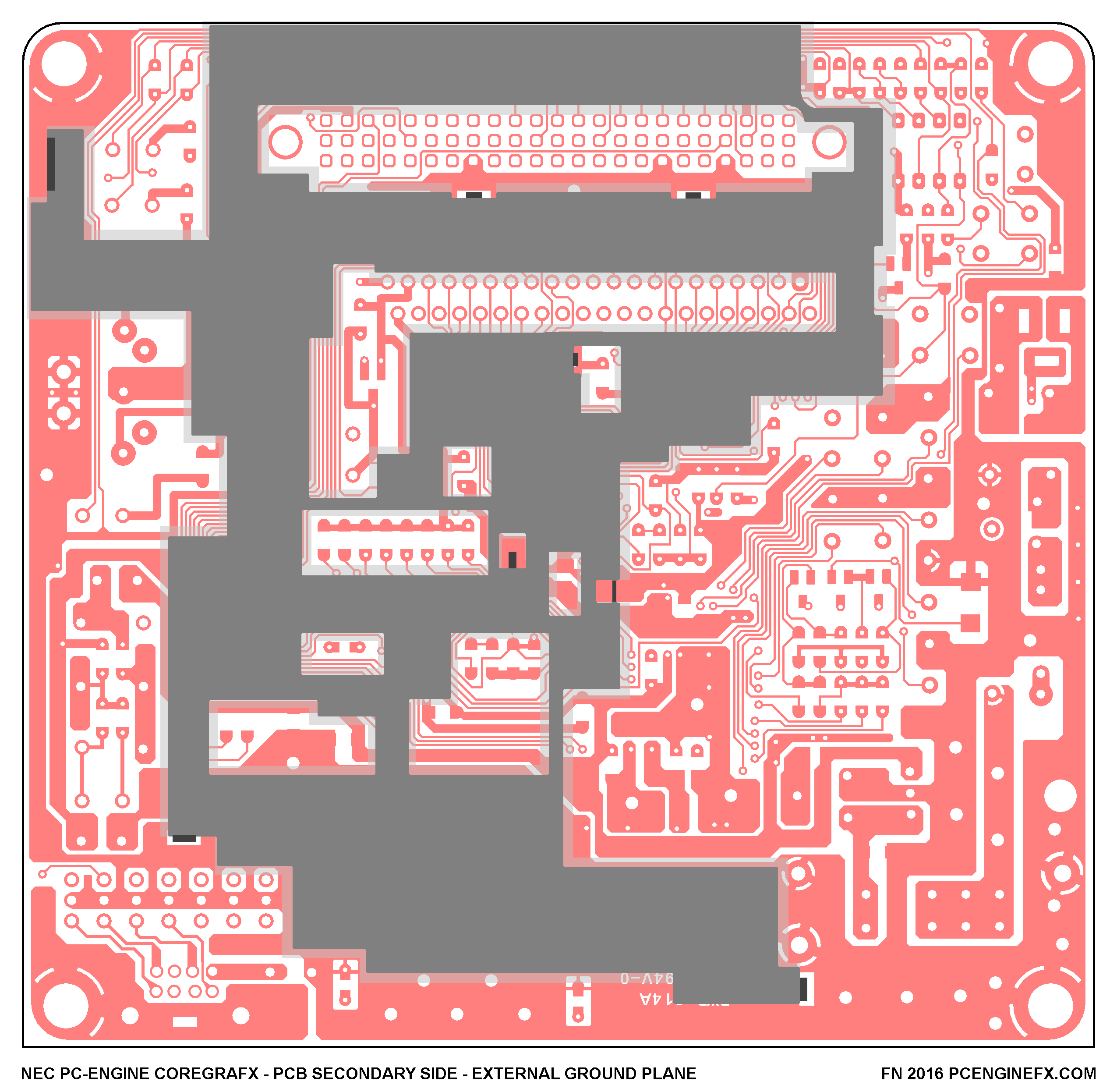

CoreGrafx PCB Secondary External Ground Plane:


Large: retrosampling.se/Coregrafx%20PCB%20Secondary%20External%20Ground%20Plane.png

More will come in in the coming months.

[thesteve]

Wow, that took some work

[DeshDildo]

AWESOME WORK!  I think this will find a nice spot up at the top of this page with the rest of the stickies.

[wolfman]

Everything needed to know about the components when in need of repairing the CoreGrafx.

Components Text File:
*** Being Written ***

PDFs for circuits and special components:
*** Being Written ***

Cool. Now I can trace vias to the AV port, having audio problems with CD sound there...maybe I´ll find out now why.

Good work!

[thesteve]

its still just the bottom copper
top copper is required as well for tracing the circuit

[Fidde_se]

Updated

[choijimmy]

Great work!

[blueraven]

  WOW. Awesome work! And thank you for this!

[deubeul]

That's more than awesome. Now waiting for the other side

[Fidde_se]

Updated
